A0 vs A1 Architectural Plans: Choosing the Right Drawing Size in 2026

Printing on the largest paper available might seem like the safest way to preserve clarity, but defaulting to an oversized sheet often creates more problems than it solves on an active build. When weighing up A0 vs A1 architectural plans, bigger doesn't automatically mean better. While drawing scale dictates technical legibility, the physical environment where people handle your drawings ultimately determines their practical value.

You've likely experienced the frustration of wrestling unwieldy paper across a cramped site desk, or worrying whether detailed 1:50 junction annotations will remain readable once printed. Wasted print runs and scaling mistakes can quickly delay planning approvals and derail tight build programmes. In this guide, you'll discover the exact differences in scale, usability, and cost between A0 and A1 architectural plans to choose the right format for site and office work. We break down standard metric scales, planning submission expectations, and practical workspace rules so you can select the correct sheet size with complete confidence.

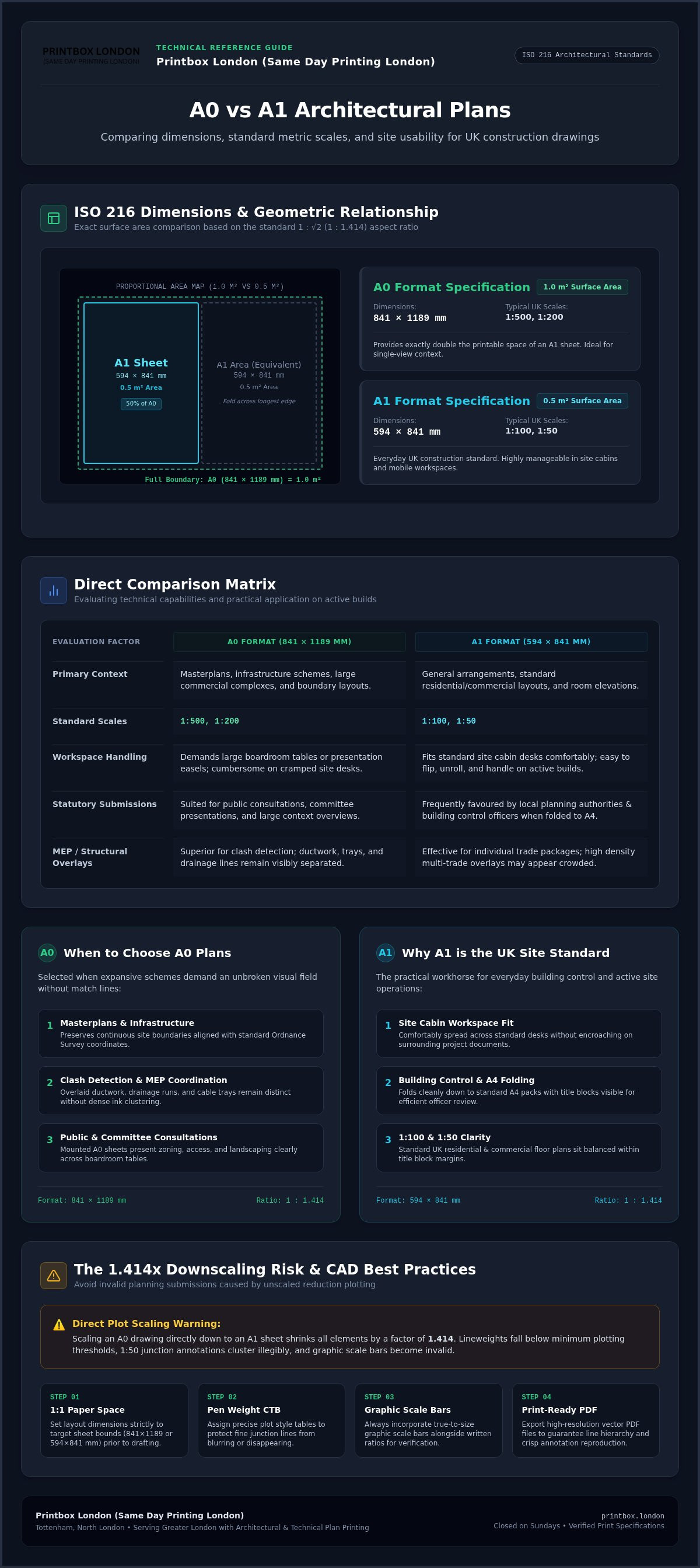

Dimensions and Scale Differences Between A0 and A1 Architectural Plans

Evaluating A0 vs A1 architectural plans starts with fundamental geometry. Under ISO 216 specifications, an A0 sheet measures 841 x 1189 mm, delivering exactly one square metre of surface area. In contrast, an A1 sheet measures 594 x 841 mm, providing 0.5 square metres. Because an A0 sheet provides precisely double the printable space of an A1 sheet, your format choice directly dictates how much drawing detail you can communicate at a legally compliant metric scale.

Format	Dimensions (mm)	Surface Area	Typical UK Scales	Primary Practical Context
A0	841 x 1189 mm	1.0 m²	1:500, 1:200	Masterplans, infrastructure schemes, large commercial layouts
A1	594 x 841 mm	0.5 m²	1:100, 1:50	General arrangements, building control submissions, site cabins

ISO 216 Geometry and Visual Area Comparison

Fold an A0 sheet cleanly across its longest edge, and you produce two A1 sheets. The governing international paper size standard maintains a constant 1:√2 (1:1.414) aspect ratio across both sizes. This geometric consistency allows drawings to scale between formats without stretching. However, scaling an A0 drawing directly down to A1 shrinks every element by a factor of 1.414. Lineweights drop below minimum plotting thresholds, technical text clusters together, and critical white space vanishes. Protecting visual hierarchy requires selecting your sheet size before configuring CAD viewports, rather than shrinking layouts during plotting.

Standard UK Drawing Scales Across A0 and A1

Drawing scale directly influences your sheet selection. Large site boundaries and extensive civil infrastructure layouts typically require A0 sheets to present 1:500 or 1:200 plans as cohesive, single views. Conversely, UK residential and commercial general arrangement drawings at 1:100 sit comfortably within standard A1 boundaries without feeling cramped.

When drafting detailed 1:50 room layouts or 1:20 construction junctions, annotation density rises sharply. If a complex layout outgrows an A1 title block, you must choose between dividing the floor plan across multiple A1 sheets or stepping up to A0. Specifying high-precision architectural plan printing ensures that whether you print extensive A0 layouts or compact A1 elevations, pen weights and graphic scale bars reproduce true to size.

When to Choose A0: Masterplans, Large Complexes, and Formal Submissions

Selecting the right format in the A0 vs A1 architectural plans debate depends heavily on project scope and audience. While smaller sheets keep daily site management agile, expansive schemes demand an unbroken visual field. An A0 sheet provides the canvas required to show an entire development in context, eliminating the need to match edge lines across multiple fragmented pages during high-stakes presentations.

Masterplans and High-Density Infrastructure Projects

Expansive residential developments, transport interchanges, and mixed-use commercial masterplans require A0 sheets to preserve uninterrupted visual context. Splitting a continuous estate layout across two A1 drawings complicates spatial assessment for clients and planning committees. Large-format layouts ensure site boundaries match standard Ordnance Survey coordinates accurately without forcing awkward match-lines. For statutory public consultations or council planning committee presentations, a single, professionally mounted A0 drawing delivers immediate impact, making zoning, vehicular access, and landscaping schemes clear from across a committee table.

Complex MEP Coordination and Structural Overlays

Multi-disciplinary coordination meetings present another clear case for A0 printing. When mechanical, electrical, plumbing, and structural steel layers sit on a single plan, drawing density spikes dramatically:

• Clash detection: Overlaid ductwork, drainage runs, and cable trays remain visually distinct rather than turning into illegible clusters of overlapping ink.
• Colour-coded differentiation: Subtle variations in line weights and layer colours stay sharp and discernible under boardroom lighting.
• Comprehensive elevations: Grouping multiple primary facade elevations and site sections onto one drawing lets consultant teams cross-reference floor levels instantly.

When preparing drawings for an upcoming planning meeting or coordination workshop, you need every lineweight to reproduce crisply without ink bleed. If you have an urgent presentation deadline, you can contact Printbox London (Same Day Printing London) to confirm drawing specifications and same-day turnaround options.

Why A1 Is the Everyday UK Construction Industry Standard

Walk onto almost any commercial build or residential refurbishment in the UK, and you will find A1 drawings pinned to the walls. While masterplanners often lean toward maximum sheet space, the practical debate between A0 vs A1 architectural plans usually ends in favour of A1 on active job sites. It delivers the ideal compromise, offering enough drawing area to convey complex 1:100 floor layouts and structural details without overwhelming the work environment.

Site Cabin Ergonomics and Handling in London

Site cabin space across London is notoriously tight. Standard site hut benches and temporary plywood layout tables typically measure around 900 mm in depth, making an A1 sheet (594 x 841 mm) fit comfortably with room to spare for clipboards, phones, and coffee mugs. Spreading out an 841 x 1189 mm A0 sheet on the same desk forces paper to drape over edges, inviting tears, spills, and creased annotations.

Handling drawings outside the cabin presents similar challenges. Unrolling an A0 plan in gusty British weather or within a confined stairwell core quickly turns into a two-person struggle. In contrast, an A1 drawing remains stiff enough to hold upright against a clipboard or timber stud frame. For project managers travelling across town by Tube or bus, an A1 drawing tube is also far easier to carry through crowded stations without snagging turnstiles or damaging rolled edges.

Storage, Filing, and Revision Turnaround

Workshop infrastructure and statutory documentation systems are built around the A1 format. Standard UK metal plan chest drawers are engineered specifically to store A1 sheets flat, protecting live drawings from curling. Additionally, building control officers and site inspectors often require hard-copy revision packs kept in ring binders. An A1 drawing folds cleanly into standard A4 modular panels using standard accordion folds, keeping the title block visible on the front cover for quick filing.

Fast-moving jobs produce frequent revisions. Issuing revised drawings on A1 consumes less paper and ink, lowering running print costs across dozens of architectural updates. Setting up your viewports correctly from the start ensures that annotations remain legible on standard site sheets; explore our accurate CAD drawing guide for step-by-step scaling instructions.

How to Prepare CAD Files for Accurate A0 and A1 PDF Printing

Precision drafting counts for little if your file fails at the plotter. When weighing up A0 vs A1 architectural plans, export settings determine whether your hard copies remain legally compliant and readable. Follow this five-step checklist before sending your drawings to production:

• Step 1: Set paper space to 1:1 true sheet measurements. Define your layout tab boundaries to exact ISO margins (841 x 1189 mm for A0 or 594 x 841 mm for A1) rather than relying on default plotter bounds.
• Step 2: Assign distinct pen table weights (CTB files). Calibrate fine lines so light hatch fills don't bleed into solid structural elements.
• Step 3: Always include a graphic scale bar. Combine written ratios (such as 1:100) with a physical metric bar to keep drawings verifiable if reproduced on different formats.
• Step 4: Export directly to PDF at 100% scale. Turn off automatic scaling or page compression during export to maintain vector precision.
• Step 5: Perform a physical test scale check. Measure a known dimension using an architectural scale rule on an initial print before running full project sets.

Avoiding the Fatal "Fit to Page" Scaling Error

Selecting "Fit to Printable Area" or "Scale to Fit" in your print dialog ruins accurate drawings. This setting shrinks your layout by roughly 3% to 6% to accommodate non-printing edge margins. On a 1:100 general arrangement plan, that tiny reduction throws off scale ruler checks by several hundred millimetres on-site, risking costly structural installation errors. For comprehensive calibration tips, review our detailed guide to engineering drawing printing in London.

Line Weights, Annotations, and Title Block Adjustments

Resizing an A0 drawing straight down to A1 without amending CAD styles introduces serious legibility issues. Ultra-fine 0.13 mm pen weights drop below the threshold of reliable toner adhesion, causing hairline walls to vanish. Set your minimum finished text height to 2.5 mm across all floor notes and dimensions to keep annotations clear on busy job sites. Finally, always anchor your title block in the bottom right corner of the sheet. When the drawing undergoes standard accordion folding to A4, the revision number, project code, and drawing name remain instantly visible without unfolding the whole plan.

Professional Plan Printing Options with Printbox London (Same Day Printing London)

Meeting tight submission deadlines requires a print partner who understands technical precision. Whether you have resolved the A0 vs A1 architectural plans debate for an active site or a major tender submission, Printbox London (Same Day Printing London) produces high-precision technical drawings calibrated to preserve exact CAD scales. Same-day printing is available depending on quantity, specification, and capacity, giving design practices and contractors rapid access to vital drawings across the capital.

Paper Grades, Ink Durability, and Finishing Choices

Linework accuracy starts with the right substrate. Standard CAD plotting uses 80 gsm to 90 gsm uncoated bond paper, which absorbs ink rapidly without smudging and presents sharp, high-contrast monochrome lines or colour-coded services. For outdoor site management, damp basements, or long-term handling, drawings can be printed on heavier paper stocks or encapsulated with protective lamination to resist rain, dirt, and heavy creasing.

Drawings can be prepared to match your team's workflow:

• Rolled drawings: Supplied in protective plastic sleeves or sturdy cardboard tubes to prevent transport creases.
• Accordion folding: Machine-folded to standard A4 dimensions with the title block facing forward for direct inclusion in building control binders.

Fast Turnaround and London Collection Options

Uploading vector-ready files directly through the architectural plan order portal keeps your project moving without administrative delay. Customers can collect directly from the print shop at 52 West Green Road in South Tottenham, situated conveniently near Seven Sisters Station. Alternatively, completed orders can be dispatched via local courier services to site huts, architecture practices, and developer offices across all London boroughs.

For formal pitch presentations where technical schematics sit alongside visual renders, you can combine technical plan sets with dedicated display formats. Explore A0 poster printing and A1 poster printing to produce high-impact, full-colour boards suitable for client presentations and public consultations.

Select the Right Drawing Format and Protect Your Project Timeline

Deciding between A0 vs A1 architectural plans comes down to matching drawing scale with practical workspace realities. Reserve A0 for expansive masterplans and high-level presentations where complete visual context matters most. For day-to-day site cabin coordination, building control reviews, and routine revision sets, A1 remains the practical industry standard for portability, handling, and cost-efficient issuing.

Setting up your vector files at 1:1 scale ensures your linework translates accurately onto paper. Printbox London (Same Day Printing London) delivers crisp, high-definition CAD linework on professional 80/90 gsm engineering bond paper, with precision folding options to keep your sheets organised. Same-day printing is available for urgent London construction tenders and site meetings, with convenient collection from 52 West Green Road, South Tottenham, London N15 5NR, or fast courier dispatch across Greater London.

Keep your build running smoothly and submit your next set of technical drawings with complete confidence.
